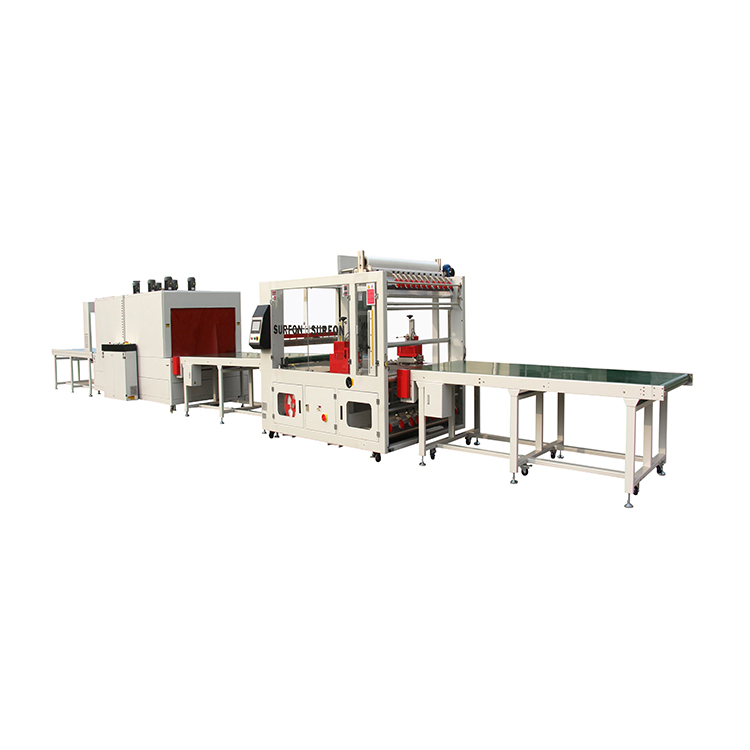

DOUBLE SIDE SEALER

Fully-auto Horizontal Double Side Sealer which is developed for special big items adopts advanced high speed double-side sealing technology. It has up & down single film rollers. The film is in sync with the items. While the items are going forward, the side saling system starts to seal and cut the up & down film that keeps good sealing; Continuous sealing & cutting and no limits of the item length make it particularly suitable for longer, wider and heavy products’ fully-closed packaging with PE film, such as doors, furniture, ladders, mattresses and other heavy and oversized objects;

Leave your contact detail now to get the latest price!

    Your Name

    Your Email

    Your telephone

    Country

    Company

    Model GH-6030AF(1300mm) SF-15040E
    Power 6kw 45kw
    Power supply AC 380/220V 3PH 50/60Hz AC 380/220V 3PH 50/60Hz
    Max. Packing Size L×W×H L(unlimited) ,300mm≤W+1.5H≤1150mm,
    ; H≤250mm
    2500x1000x250mm
    Tunnel Size L×W×H / 3000×1500×400mm
    Horizontal Blade Length 1300mm /
    Air Temperature 300℃ 300℃
    Table Height 825±25mm 825±25mm
    Packing Speed 15m/min. 0~18m/min.
    Extra Air Source 6-8kg/cm2 /
    Shrink Film PE PE
    Machine Size L×W×H 2380×1800×1780mm 5000×1850×1850mm
    Crate Size L×W×H 2430×1850×1930mm 5050×1900×2000mm
    G./N. Weight 1800/1700kgs 1950/1800kgs
    https://youtu.be/fZvQR7M90N8 Pizza boxes
    https://youtu.be/ZNB9lKhisGw Doors
    https://youtu.be/vUL_LvgGUGA
    Ladders
